●  Comprehensive analyses of frequency domain, time domain and code domain;

●  Apply to detections of pseudo base-stations and base station air-interfaces;

●  Large-scale detecting, accurate tracking and quick positioning.

I. Introduction

MSD100A is a kind of dedicated detecting equipment integrated with sweeping functions of pilot channel decoding and real time spectral analysis for pseudo base-stations. It is applied to detections of pseudo base-stations and base station air-interfaces, which can provide comprehensive analyses of frequency domain, time domain and code domain and meet such requirements as large-scale detecting, accurate tracking and quick positioning during the work.

II. Features

Sweep in high speed and display in real time;

Feature identification in channel sweeping;

Battery powered, small and exquisite;

Easy-operating human-computer interface;

Large-scale detecting, accurate tracking and quick positioning;

Position feedback with voice function;

Export date easily.

III. Functions

Spectrum sweeping for specific channels; Automatic filtration for BCCH channel spectrum masks; Display spectrograms in real time; Display the histories of waterfall plots; Display the locus diagrams of peak; Display the traces of peak; Capture the hopping signals in GSM; Parameter sweeping in full-band; Display the traces of channel power in GSM; Voice prompts.

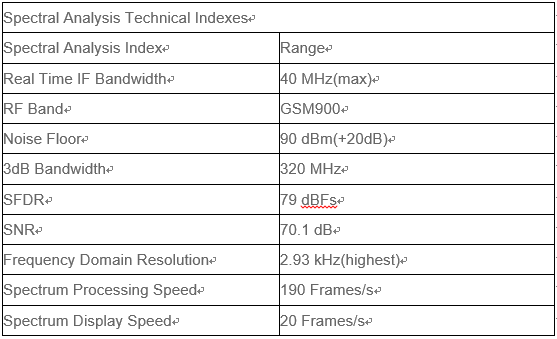

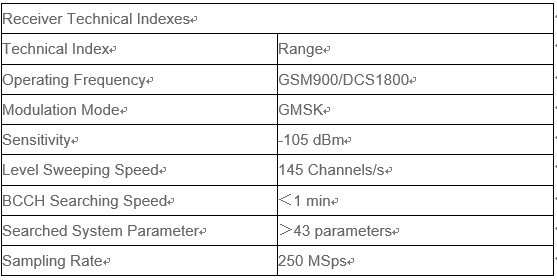

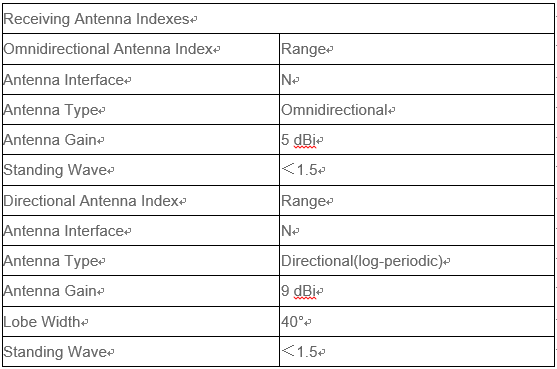

IV. Performance Indexes
