●  An automatic testing system of passive components compliant with enterprise standards

●  Meet requirements of quality control for warehouse-in testing of passive devices

●  A professional and efficient testing platform

I Introduction

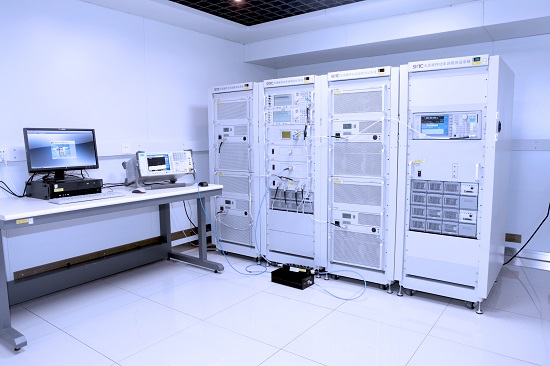

RT3200 system is an automatic testing system of passive devices compliant with enterprise standards of operators. It can test S parameters, intermodulation and power capacity for passive devices such as power dividers, directional couplers and combiners, and satisfy operators’ requirements of quality control for the warehouse-in testing of passive devices. RT3200 system is a professional and efficient testing platform for testing labs to test passive devices.

II Features

Flexible configuration of scripts as R&D of RT3200 system is based on MCTP3.0 testing platform;

Integrated high performance instrumentation, stable performance and accurate test data;

Automatic calibration and switch of links, automatically generated test report;

A solution specifically designed for warehouse-in testing of passive devices for operators, with which testing efficiency is substantially improved and the cycle of centralized purchasing is shortened.

III Working Scope

Cavity power dividers, directional couplers and 3 dB bridge, combiners, attenuators and loads.

IV Compliant Standards

China Mobile Passive Devices Technical Specifications V1.0.0

China Mobile Passive Devices Test Specifications V1.0.0

V. Testing Items

Insertion loss and passband ripple, VSWR of input ports

Reverse intermodulation of input ports, power capacity, VSWR

Isolation, stop-band rejection, attenuation error and passband ripple.
